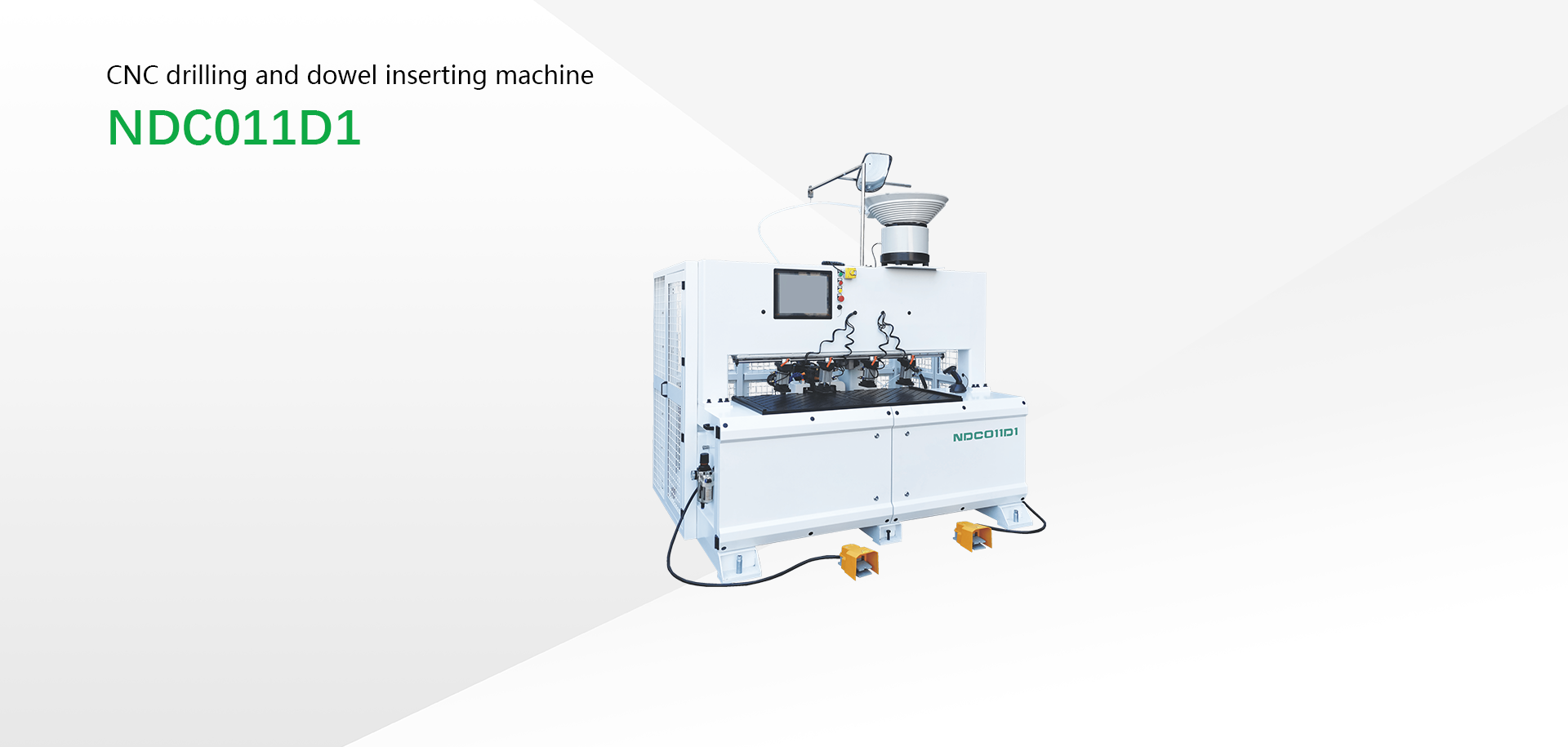

Through-feed Drilling By Servo NDC011D1
-
Industrial control CNC system is adopted to realize software docking and scanning code.
-
The drill kit is a CNC three-axis drill, which can be equipped with drill nozzles of different specifications, and can complete drilling tasks of multiple specifications at one time.
-
Workpiece thickness is automatically adjusted by servo;Wood tenon with arbitrary thickness and spacing can be implanted.
-
The machine is equipped with a 45 degree diagonal ruler, which can be used to punch the hypotenuse.
-
+91 99803 91827+91 99803 91827
-
info@nanxingindia.cominfo@nanxingindia.com
Technical Data
|
Model |
NDC011D1 |
|
Max panel width |
1200 mm |
|
Min. panel width |
50 mm |
|
Max. panel thickness |
10-40mm |
|
Max feeding speed |
78m/min |
|
Vertical drills qty. |
4 rows*11*2=88 |
|
Horizontal drills qty. |
2 rows *21=42 |
|
32mm |
|
|
Servo motor qty. |
|
|
Max vertical boring depth |
mm |
|
Max horizontal boring depth |
mm |
|
Total power |
3Kw |
|
Approx. weight |
1200 kg |
|
Overall dimension |
2000*1620*1600 mm |
